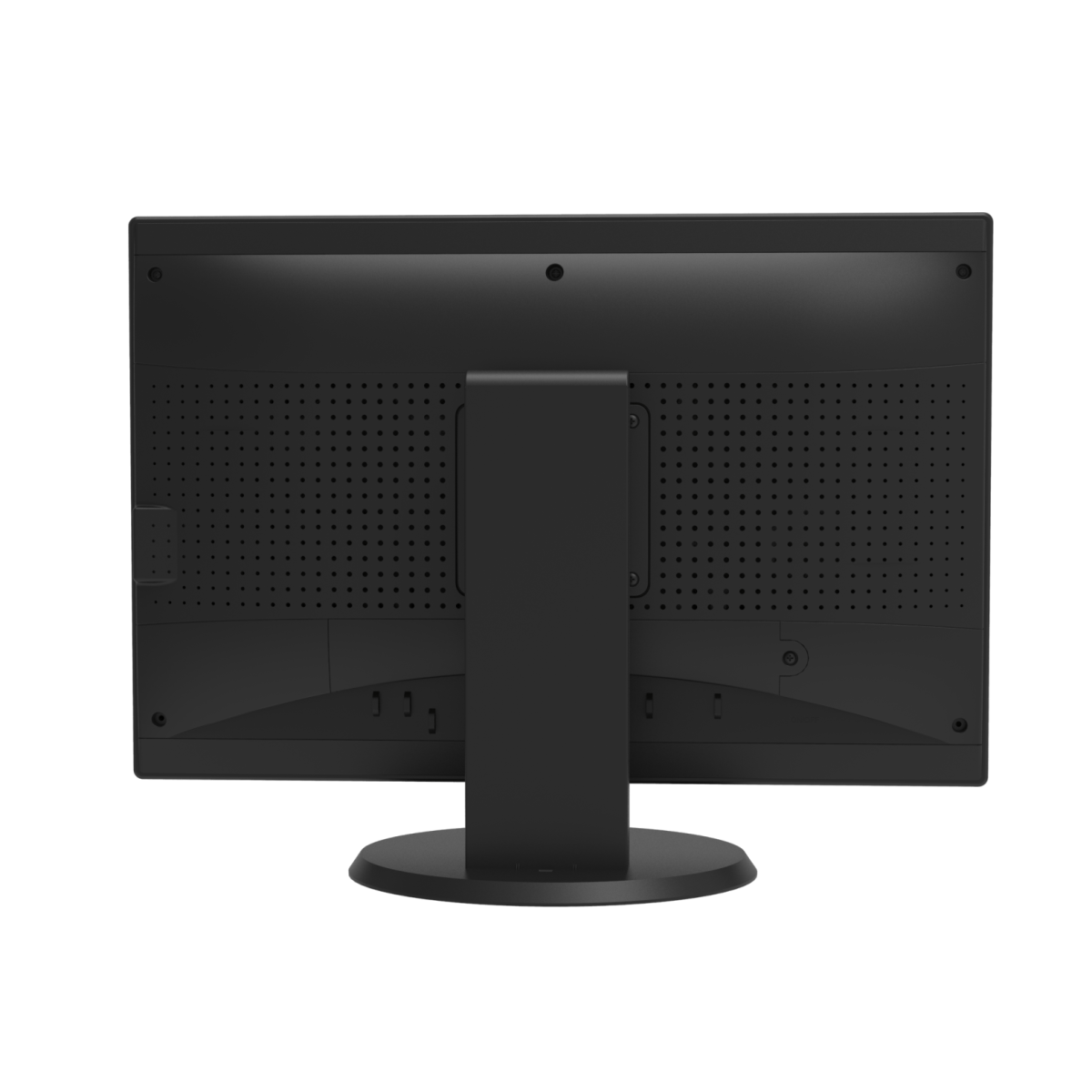

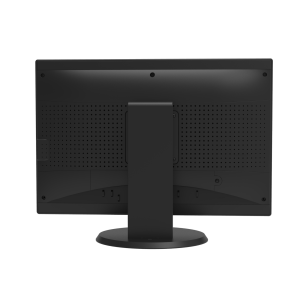

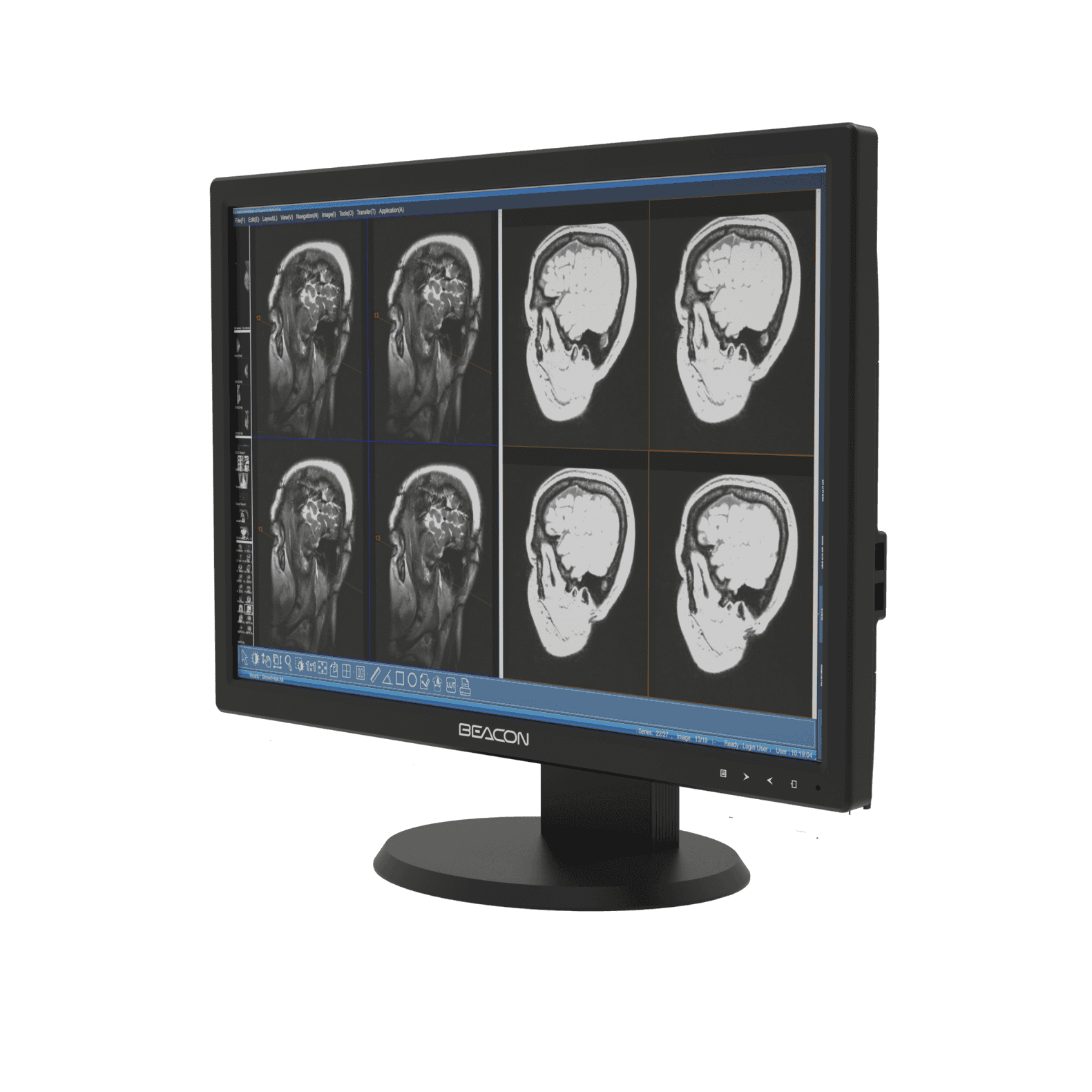

Beacon 24″ 2MP Clinical Display (HL2416SH)

Beacon

Fully compliant with DICOM standard display performance, full HD resolution, and widescreen design, it is especially suitable for clinicians to view patient information, electronic medical records and browse various medical images in a film-free environment.

The built-in integrated backlight sensor monitors the brightness of the backlight, ensuring that the display can quickly achieve brightness stability at startup and maintain a consistent brightness throughout the life cycle.



SKU: BDT-HL2416SH Category:

Beacon HL2416SH

Product Features:

  • Display Size：24“
  • Resolution：1920×1200
  • integrated backlight sensor

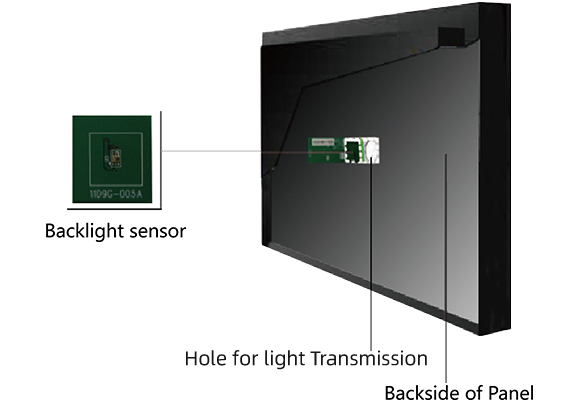

Backlight stabilization system

The built-in integrated backlight sensor continuously monitors the brightness of the backlight. It can quickly achieve brightness stability at startup and automatically compensate for changes in ambient temperature and brightness loss caused by long-term use, maintaining brightness consistency throughout the product life cycle.

Comply with DICOM international standard

Accurately display medical images and the smallest details, and maintain the display consistency of different monitors, as well as the display consistency between monitors and different imaging equipment, to ensure diagnostic accuracy.

Warranty

5 Years
Active Screen Size (HxV)

20.7 x 11.7 in
(527 x 296 mm)
Screen Technology

IPS
Diagonal Size

24” (605 mm)
Aspect Ratio

16:9
Resolution

2MP (1920×1200)
Luminance

600 cd/m² Typ.
(180 cd/m² DICOM)
Contrast Ratio

1000:1 Typ.
Screen Protection

Anti-Glare
Sensor Technology

Backlight Stability Sensor
Imaging Technology

Backlight Stabilization System, Compliant with DICOM Standard
Input and Outputs

DisplayPort, DVI-D
Certifications

CE (Medical Device), ANSI/AAMI ES60601-1, CAN/CSA C22.2 No. 60601-1, IEC60601-1, FCC-B, CCC, RoHS, China RoHS
