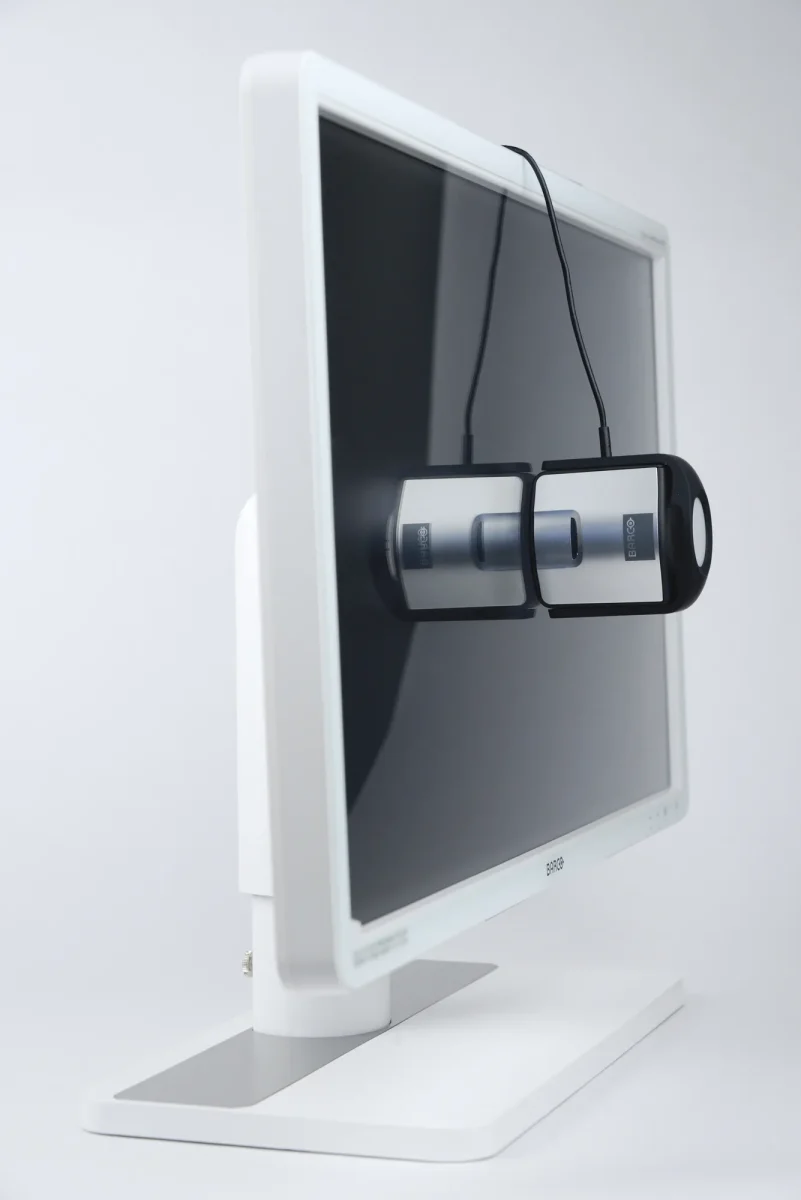

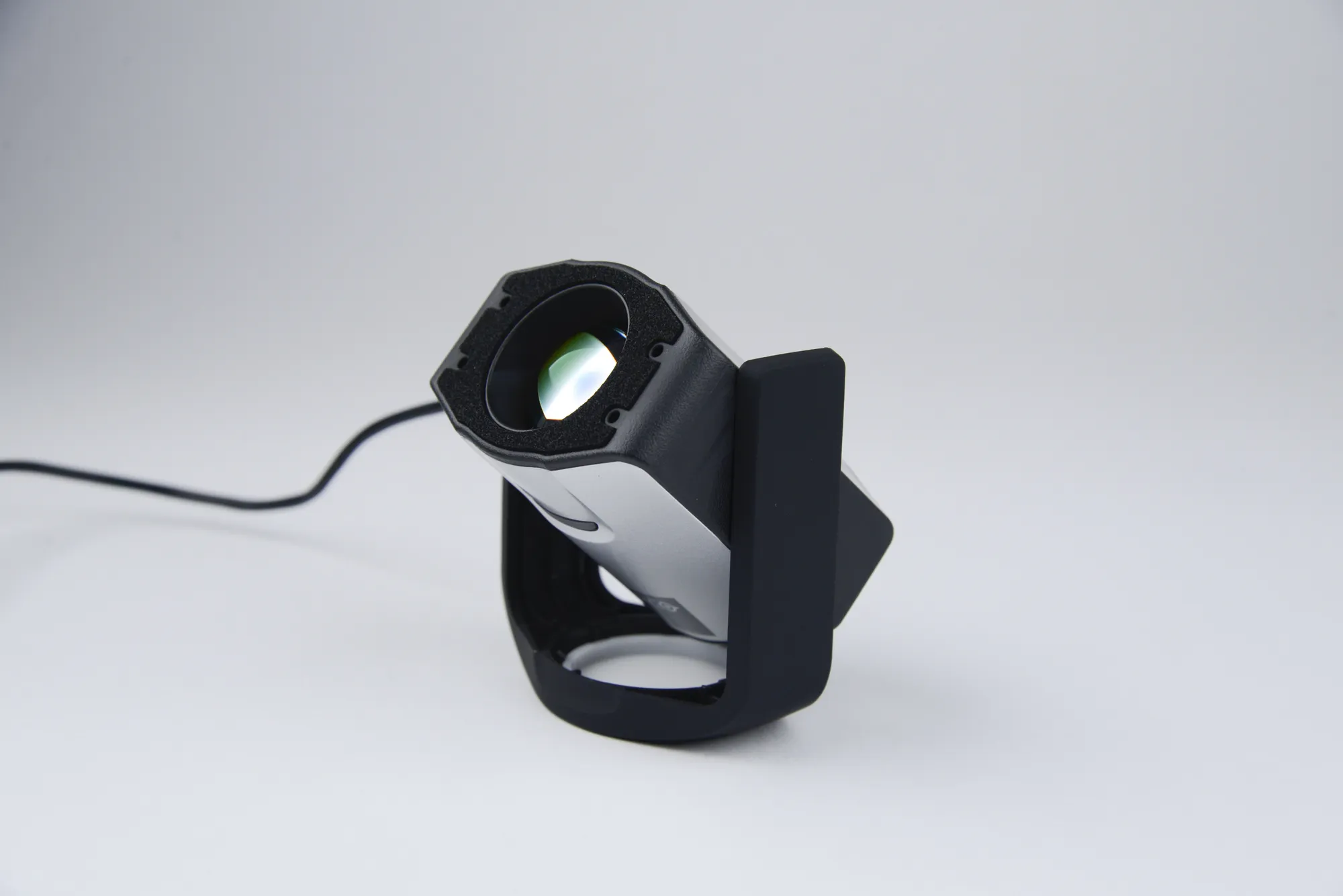

The Barco LCD sensor is an industry-leading colorimeter featuring Barco-specific calibration technology. Allowing seamless integration with QAWeb Enterprise – our unique online service for automated calibration, Quality Assurance, and asset management – this colorimeter offers the best value for money.
The LCD sensor analyzes color contrast and brightness in no time and with the highest accuracy. It also automates ambient light measurements in combination with Barco’s QAWeb for DIN 6868-157 software version. The optical system supports displays with all current and emerging backlight technologies, including LED.
The colorimeter’s intuitive and compact design makes it very easy to use with any Barco medical display. The Barco LCD sensor comes with a standard 2-year warranty.
Specifications
| General specifications |
|
|---|---|
| Connectivity | USB, max. 100mA (low power) (PC) |
| Supported backlight technologies | CCFL, White LED, RGB LED, Wide Gamut |
| Luminance range | 0.2-1200 cd/m2 |
| Illuminance range | 0.2-1200 Lux |
| Accuracy (luminance and illuminance) | Specification on Illuminant A:
D Y +/- 4% at 100 cd/m2 (Lux) D x,y +/- 0.004 at 100 cd/m2 (Lux) |
| Repeatability (luminance and illuminance) | Specification on Illuminant A:
±0.001 x,y @ 100 cd/m2 (Lux) ±1.0% luminance @ 100 cd/m2 (Lux) |
| Resolution (luminance and illuminance) | x, y, Y: 3 or more significant digits |
| OS compatibility | Windows XP and higher |
| Supported MediCal QAWeb Agent version | V1.12.04 or higher See MediCal QAWeb OS compatibility |
| Box dimensions | 19.3 x 14.3 x 5.4 cm 7.6 x 5.6 x 2.1 inches |
| Warranty | 2 years |
Enabling bright outcomes
Imagine a way to see, sense, and share the intangible. It’s what happens when big data becomes knowledge. When images become insight. And when experiences come to life. That’s what Barco is all about.
Focused on transforming the delivery of care, Barco connects healthcare professionals at every patient touchpoint, from the imaging room to radiology, through specialist consultations and into the surgical suite. We offer a network of medical imaging solutions that deliver the complete picture to support more informed decisions, when and where it matters most.
More than a medical display
Increasing image volumes, the growing complexity of studies, and physical discomfort while reading are the three biggest challenges radiologists face today. That is the conclusion of a 2014 survey conducted by The MarkeTech Group. The solutions? Improved image quality (91%), a more efficient workflow (77%), and better display ergonomics (70%), as indicated by radiologists themselves.
We are able to provide capabilities that can improve the reading experience in all aspects: speed, accuracy, intuitiveness, flexibility and ergonomics. How? By offering a complete imaging solution – high-quality display, ultra-fast controller for fast image loading and manipulation and automated calibration & QA to ensure peak performance and uptime – in which all components function smoothly as a unified system.
Barco’s integrated technology platform enables us to develop a unique set of Intuitive Workflow features resulting in increased reading accuracy and decreased reading time. Only Barco display systems offer this diagnostic toolset, which adds a new dimension to radiologists’ workflow by streamlining frequent tasks with automated features. Designed to help you speed through your workload with ease, these builtin, easy-to-use functions appear at your command, seamlessly paving the way for effortless productivity and working comfort.
