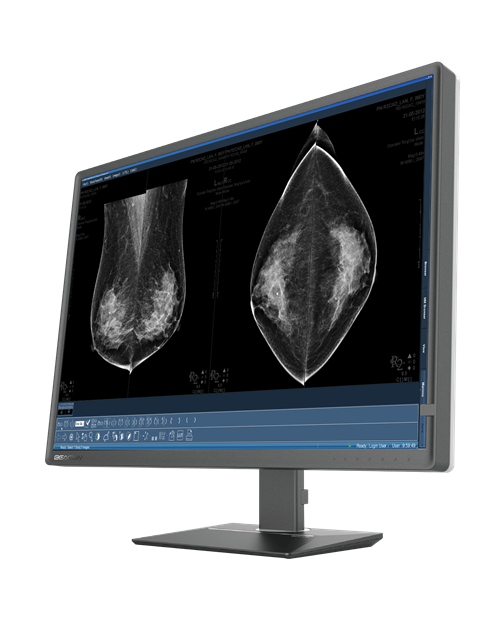

Beacon 31″ 12MP (C1216W)

Beacon

Beacon C1216W is with 4200 X 2800 resolution, ultra high brightness, ultra high contrast, wide angle of view. C1216W can keep the consistency of the brightness during the life cycle of the display, and calibrate the DICOM continuously, built-in 14bit LUT, can meet the demand of high precision medical imaging.

SKU: BDT-C1216W Category:

Beacon C1216W

Product Features:

  • Display Size：30.9″
  • Resolution：4200×2800
  • KVM function
  • Split-screen independent GAMMA
  • Integrated backlight sensor
  • Continuous Quality Calibration System

KVM Function

Supports switching and enabling the KVM function with one button. Two workstations are connected, which share the mouse and keyboard.

Split Screen Independent GAMMA

The brightness requirements of images and reports are different, and the split-screen independent GAMMA can be adjusted to the appropriate brightness according to the display object, which is convenient for doctors to view images and reports at the same time, without causing eye discomfort due to brightness.

Backlight stabilization system

The built-in integrated backlight sensor continuously monitors the brightness of the backlight. It can quickly achieve brightness stability at startup and automatically compensate for changes in ambient temperature and brightness loss caused by long-term use, maintaining brightness consistency throughout the product life cycle.

Comply with DICOM international standard

Accurately display medical images and the smallest details, and maintain the display consistency of different monitors, as well as the display consistency between monitors and different imaging equipment, to ensure diagnostic accuracy.

Warranty

5 Years
Active Screen Size (HxV)

25.7 x 17.1 in
(653 x 435 mm)
Screen Technology

IPS
Diagonal Size

31.0” (785 mm)
Aspect Ratio

3:2
Resolution

12MP (4200 x 2800)
Luminance

1200 cd/m² Typ.
(500 cd/m² DICOM)
Contrast Ratio

1500:1
Screen Protection

Anti-Glare
Sensor Technology

Internal Front Sensor, Backlight Stability Sensor
Diagnostic Imaging Technology

Backlight Stabilization System, Compliant with DICOM Standard, Continuous Quality Assurance System, Ambient Light Adaptive System, Hybrid Gamma, Uniformity Calibration Technology, Quality Assurance Software, Primary Screen Adaption, Spot Light Function
Input and Outputs

DisplayPort (2x), HDMI (2x), Daisy Chain
Certifications

CE, FDA
