Synology – RackStation RS1221RP+

Synology – RackStation RS1221RP+

• High Performance
  Tackle multi-user environments effortlessly with up to 2,315 MB/s read and 1,147 MB/s write performance
• Ready for 10/25GbE
  Supports 10GbE SFP+/RJ-45 and 25GbE SFP28 NICs to instantly increase network bandwidth based on your infrastructure
• Synology High Availability
  Configure two units together to create a high-availability cluster for maximum service uptime and minute-level failover

Compute

AMD Ryzen™ V1500B quad-core 2.2 GHz

Throughput

2,300 MB/s seq. read 100K 4K random read IOPS

Memory

4 GB ECC DDR4 Up to 32 GB

Compact

30cm depth (38cm for RP model)

A compact design for space efficiency

The RS1221+ and its RX418 expansion units are designed to help you save space in compact deployments. At only 30 centimeters, half the length of a typical 2U unit, it fits perfectly snug onto 2-post or shallow rackmount enclosures. The RS1221RP+ with dual power supplies comes in at 38 cm, also fitting most shallow depth enclosures.3

• Fits into shallow rackmount enclosures
• Easy-to-install on 2-post racks

High performance storage for anything

Up to 2,315/1,147 MB/s sequential read and write throughput and over 100K/54K random read/write IOPS ensures ample performance for demanding workloads.

High performance storage for anything

Up to 2,315/1,147 MB/s sequential read and write throughput and over 100K/54K random read/write IOPS ensures ample performance for demanding workloads.

Read
285%
faster

Write
117%
faster

Built for reliability

Redundant power

Reduce the chance that power disruptions on a single distribution channel or PDU causes data and service availability degradation.

Maximize service availability

When paired with another identical unit, Synology High Availability enables automatic minute-level failover between two clustered servers in the event of a server failure to minimize service downtime.

Data integrity and protection

ECC memory and the Btrfs file system bring higher reliability and snapshot capabilities to help prevent data corruption and simplify data protection.z

With room to grow with you

Easily upgrade the RS1221RP+/RS1221+ to match your usage environment, whether it’s for performance, faster networking, or higher storage capacity.4

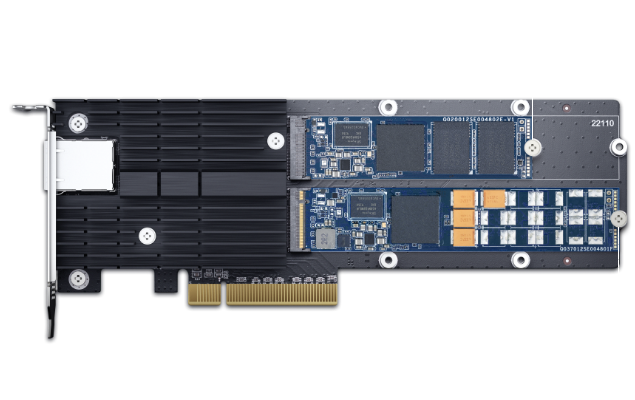

SSD cache

Boost read/write IOPS over HDD-only arrays by 16X or more with NVMe or SATA SSD Cache

Maximize data availability

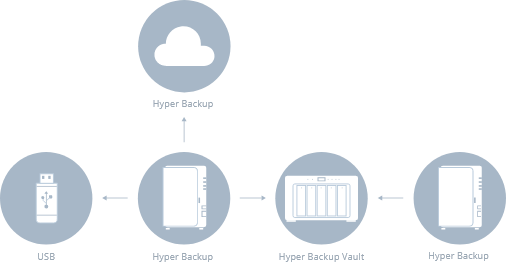

Hyper Backup

A comprehensive backup and recovery solution for added data protection. Create backup destinations locally, on another Synology device, rsync servers, or cloud-based destinations, such as Google Drive, Dropbox, S3-compatible destinations, and Synology C2 Storage, a dedicated backup destination for Synology devices. Deduplication, integrity checks, and incremental transfer technology reduce bandwidth and storage use.

Snapshot Replication

Easily schedule flexible point-in-time backups of shared folders and LUNs with an RPO as low as 5 minutes and recovery in seconds. Set up replication and failover to other Synology storage systems for fast RTOs and minimal service disruption

Protect your entire IT infrastructure

Protect your entire office with Active Backup

The Active Backup suite enables administrators to easily secure their entire IT infrastructure by backing up mission-critical data to their NAS, including Windows & Linux workstations and servers, file servers, VMware and Hyper-V virtual machines, and Microsoft 365 and Google Workspace accounts. Benefit from deduplication, multiversioning to quickly jump back in time, and additional data efficiency optimizations for reduced bandwidth and storage use.

Virtual Machine Manager

Run various operating systems in isolated sandboxes. Seamlessly clone, store, and migrate virtual machines.

Central Management System

Conveniently manage your fleet of Synology NAS from a centralized console.

Synology High Availability

Seamless transition between clustered servers in the event of a server failure to minimize the impact on applications.

Surveillance Station

Complete surveillance solution for recording, monitoring, and management.

Synology Drive

Instantly access your NAS files across multiple devices whenever you want, wherever you are.

Collaboration Suite

Satisfy all team collaboration needs behind the safety of your own private cloud with Synology Office, Calendar, and Chat.

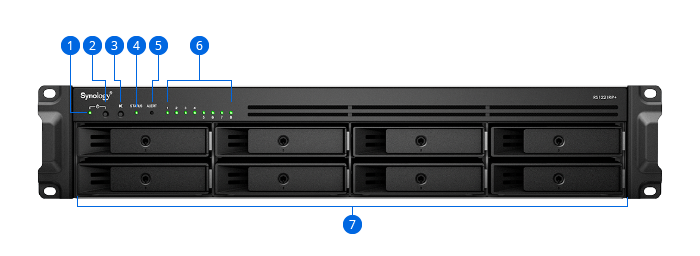

• 1. Power Indicator
• 2. Power Button
• 3. Alert Off Button
• 4. Status indicator

• 5. Alert indicator
• 6. Drive status indicator
• 7. Drive tray

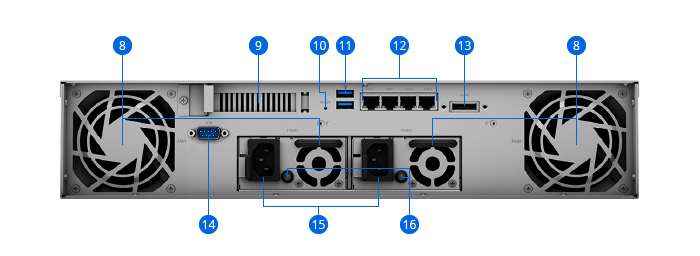

• 8. System fan

• 9. PCIe expansion slot
• 10. Reset button
• 11. USB 3.2 Gen 1 port
• 12. 1GbE RJ-45 port

• 13. Expansion port
• 14. Console port
• 15. Power port
• 16. PSU Indicators & Alert Off Buttons
