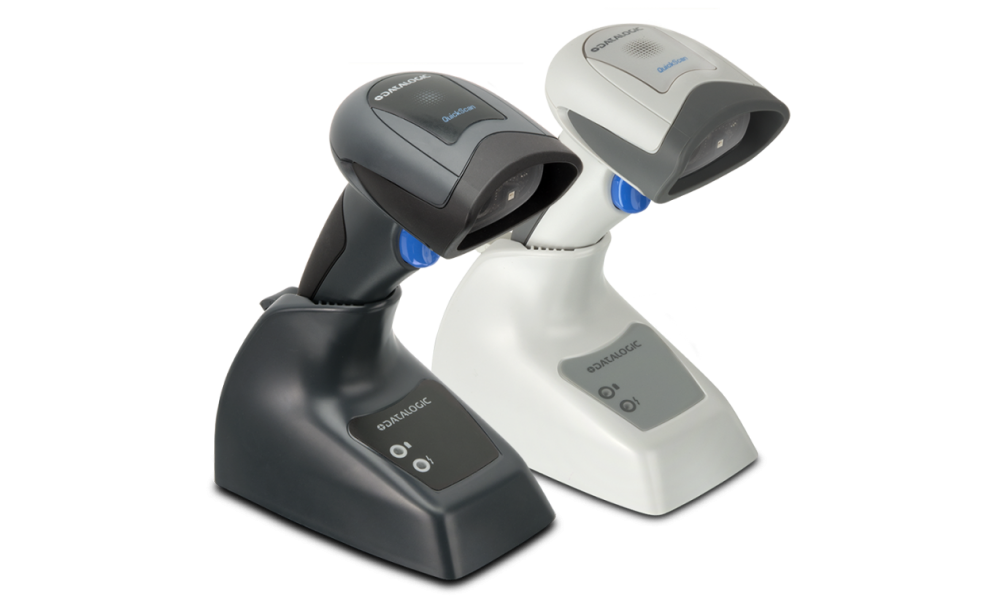

Datalogic QuickScan QBT2131 Kit – 1D Linear Imager

Datalogic

The QuickScan™ QBT2131 cordless scanner is a entry level linear imager which provides the customer with the flexibility of scanning various 1D bar codes in a working area of 25.0 m / 82.0 ft away from the host.
This scanner features a decent Depth of Field scanning range and an extra-wide scan angle creating long and sharp scan lines for reading long bar codes at a closer distance. The long life and fast-charging user replaceable battery supports longer working hours in between charging. The QBT2131 imager can pair up directly with the host Bluetooth® device and can be charged using a direct micro USB cable from the host.

Kit Contains:
Imager, Base Station and 90A052258 USB Cable.

SKU: DTL-QBT2131-BK-BTK1 Category:
Datalogic QuickScan QBT2131 Kit
  • Cordless 1D Linear Imager Scanner
  • Extra-wide scan angle and extra-long scan line
  • Sharp and highly visible scan line
  • Enhanced depth of field for general purpose scanning applications
  • Bluetooth® Wireless Technology
  • Easy, tool-free, user-replaceable, long-lasting lithium-ion battery
  • New battery package allows simultaneous change of charging contacts during battery replacement
  • Alternative battery recharging through USB /microUSB cable
Linear Decoding

Today there is an increased trend towards 2D bar codes, however, linear barcodes are still dominant in the automatic data capture industry. Long barcodes are commonly used in a variety of applications including utilities bills, document processing and packaging. These long codes are a challenge for full area imagers to read due to their narrow field of view and shorter depth of field.

Enhanced Performance

The QuickScan QBT2131 imager’s extra wide field of view and extra-long scan line makes reading long bar codes in closer distances much easier. The sharp and highly visible scan line makes the scanner more user-friendly to use, while the enhanced depth of field enables barcodes to be read at an intuitive distance. The stylish design is the signature of
the QuickScan series, completing a consistent family appearance.

Cordless Communications

–
Bluetooth Wireless Technology

Piconet: Max. Readers per Radio Receiver Using
Commercial Dongle: 7; Using Cradle: 1
Radio Frequency

2.4 GHz
Radio Range (Open Air)

25.0 m
Electrical

–
Battery Type

Lithium-Ion 1400 mAh
Charge Time External Power

4 hrs @ 12 VDC
Reads Per Charge

30,000+
Environmental

–
Ambient Light

0 – 120,000 lux
Drop Resistance

Withstands repeated drops from 1.5 m onto a concrete surface
Interfaces

Interfaces Keyboard Wedge / OEM (IBM) USB / RS-232 / USB
Physical Characteristics

–
Colours Available

Black
Dimensions

16.3 × 9.1 × 4.1 cm
Weight

Reader: 190 g
Base/Charger: 221 g
Reading Performance

–
Field of View

56° ± 2°
Reading Angle

Pitch: ±65°; Roll (Tilt): ±45°; Skew (Yaw): ±70°
Warranty

3-Year Factory Warranty
