LynX Cardiology Table

LynX

Our M Range Cardiology Tables are purpose-built for clinical environments, featuring a specialised cutout that enables optimal patient positioning for cardiac examinations and Echo-style transducer techniques.

For enhanced accessibility, a wider 760 mm option is available, offering an enlarged cutout area to improve operator access and patient comfort.

SKU: N/A Category:
Features:
  • Electric Height Adjustment with Foot Switch
  • X-Frame Lift Action Minimises Pinch and Crush Points
  • Heavy Duty Individually Lockable Castors
  • Durable Powder Coated Rust Resistant Steel Frame
  • High Quality Anti-microbial Vinyl and CFC Free Foam
  • Available in 710mm or 760mm Widths Enabling for a Larger Cut-Out
  • Australian Designed and Manufactured
  • Warranty (Parts Only) – 10 Year Structural on base and frame – 5 Year Electrical – 3 Year Upholstery

M Type Cardiology Table (Backrest & Body Cutout)

Product Information
Maximum Working Load 400kg (stationary)
Maximum Lifting Capacity 250kg
Minimum Working Height 450mm
Maximum Working Height 950mm
Table Width 710mm (Available in 760mm Width for larger Cutout)
Table Length 1840mm
Cushioning 50mm Foam
Controller Foot Switch
Base / Castor LynX Frame with Lockable Castors
Backrest Manual Adjustment +70°
Cutout Maually Opens and held with magnetic catches

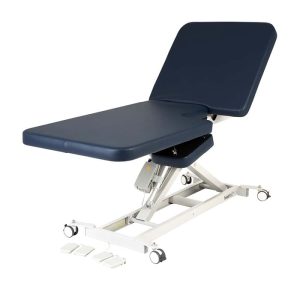

M1 Type Cardiology Table (Body Cutout)

Product Information
Maximum Working Load 400kg (stationary)
Maximum Lifting Capacity 250kg
Minimum Working Height 450mm
Maximum Working Height 950mm
Table Width 710mm (Available in 760mm Width for larger Cutout)
Table Length 1840mm
Cushioning 50mm Foam
Controller Foot Switch
Base / Castor LynX Frame with Lockable Castors
Backrest Manual Adjustment +70°
Cutout Maually Opens and held with magnetic catches

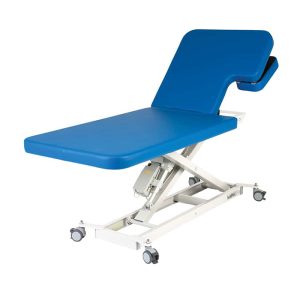

M2 Type Cardiology Table (Backrest Cutout)

Product Information
Maximum Working Load 400kg (stationary)
Maximum Lifting Capacity 250kg
Minimum Working Height 450mm
Maximum Working Height 950mm
Table Width 710mm (Available in 760mm Width for larger Cutout)
Table Length 1840mm
Cushioning 50mm Foam
Controller Foot Switch
Base / Castor LynX Frame with Lockable Castors
Backrest Manual Adjustment +70°
Cutout Maually Opens and held with magnetic catches

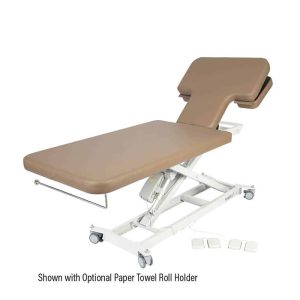

MM Type Cardiology Table (Dual Backrest Cutout)

Product Information
Maximum Working Load 400kg (stationary)
Maximum Lifting Capacity 250kg
Minimum Working Height 450mm
Maximum Working Height 950mm
Table Width 710mm (Available in 760mm Width for larger Cutout)
Table Length 1840mm
Cushioning 50mm Foam
Controller Foot Switch
Base / Castor LynX Frame with Lockable Castors
Backrest Manual Adjustment +70°
Cutout Maually Opens and held with magnetic catches

Colour Options:

1 Snow 18 Port 35 Maple
2 Coconut 19 Sorbet 36 Cedar
3 Chalk 20 Tangerine 37 Cameo
4 Shell 21 Mink 38 Lemon
5 Sand 22 Lipstick 39 Carnival
6 Smoke 23 Primrose 40 Lime
7 Steel 24 Rhubarb 41 Citronelle
8 Iceberg 25 Paprika 42 Grass
9 Lagoon 26 Flame 43 Emerald
10 Galaxy 27 Plumb 44 Seagrass
11 Periwinkle 28 Lilac 45 Caribbean
12 Atlantic 29 Pewter 46 Forest
13 Wedgewood 30 Almond 47 Coffee
14 Windsor 31 Nougat 48 Bark
15 Regal 32 Tabacco 49 Charcoal
16 Navy 33 Clay 50 Eggplant
17 Ruby 34 Brazil 51 Black



Product Information
Weight 80kg
Dimensions 2050 x 850 x 650mm
Warranty (structural) 10 Year
Warranty (Electrical) 5 Year
Width

710mm, 760mm
Cut Out Options

Backrest & Body, Body Only, Backrest Only, Dual Backrest
LynX Colours

Almond, Atlantic, Bark, Black, Brazil, Cameo, Caribbean, Carnival, Cedar, Chalk, Charcoal, Citronelle, Clay, Coconut, Coffee, Eggplant, Emerald, Flame, Forest, Galaxy, Grass, Iceberg, Lagoon, Lemon, Lilac, Lime, Lipstick, Maple, Mink, Navy, Nougat, Paprika, Periwinkle, Pewter, Plumb, Port, Primrose, Regal, Rhubarb, Ruby, Sand, Seagrass, Shell, Smoke, Snow, Sorbet, Steel, Tabacco, Tangerine, Wedgewood, Windsor
Backrest

Regular, XL (850mm Length)
Electrical Options

All Electric
